UTHE换能器

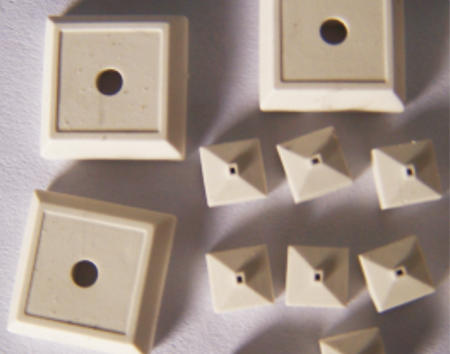

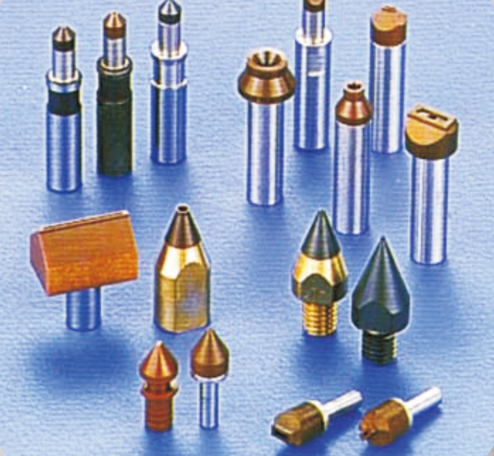

专业生产半导体和微电子等各型SMT帮定机用橡胶吸嘴、胶木吸嘴、钨钢吸嘴、顶针、点胶针、钨钢件、打火针（杆）；测试机用测试爪测试针测试座、模具顶针和定位销、流量计、连轴器以及各种规格进口碳刷和英制劈刀镙丝。公司是一家专业从事IC,LED,COB等封装的配件生产企业，专业提供适用于ASM、K&S、ESEC、SHINKAWA、TOSOK、PHILIPS、AMI、FOTON、ALPHASEM、NEC、MATSUSHITA、NICHIDEN、TOSHIBA、ZEVATEC、TEXAS INSTRUMENTS、MANUAL VACUUM WAND等各种进口品牌的半导体设备和其它SMT电子贴装设备的高精密加工的专用消耗材料、工具，兼营专项耗材加工；我公司拥有一批在新加坡从业10余年的高级工程师和一批进口的加工设备和检测设备；核心产品有：各种WIRE BOND引线框架压板，打火杆EFO，拉力钩针WIRE HOOK，推刀，劈刀螺丝；DIE BOND芯片贴装设备的各类橡胶吸嘴，钨钢吸嘴，电木吸嘴，钨钢顶针及其基座；各类固定胶水或焊料的点胶头、压模头；划片机台的切割用硅片（陶瓷）吸盘，及各类测试治具夹具等。公司自成立以来得到了，国内外多家知名企业的肯定与支持；我们本着“精益求精，务实创新”的态度，致力于提供“好品质、好服务、快交期、低价格”的产品更好的服务广大客户，提供更好的解决方案。

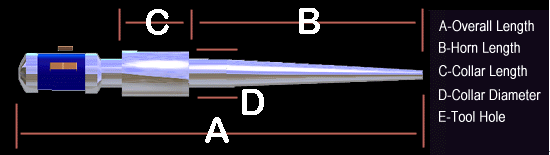

Standard Ball Transducers

Model	Freq.	A	B		C	D	E	Comments/Compatibility
17ST	63.5	4.32	2.425	0.600		0.500	0.0626	ASM, Devoltech, Hitachi, Hybond
18ST	64.3	5.94	3.935	0.900		0.748	0.0626	Shinkawa
19ST	63.1	6.05	4.073	0.600		0.749	0.0626	K&S 1418, 1419, Series
20/24ST	64.2	4.38	2.425	0.600		0.750	0.0626	Ti Abacus. Shin-Me-Hua
22ST	63.1	6.08	4.073	0.600		0.750	0.0626
23ST	63.5	5.94	3.990	0.600		0.750	0.0626	Mitsubishi, Matsushita, Toshiba
25ST	64.1	7.54	5.460	0.900		0.750	0.0626	MEI
26ST	63.9	4.38	2.280	0.600		0.750	0.0626	Philips, Phicom
B2S174	63.5	4.32	2.425	0.600		0.500	0.0626	Closed End 17ST

Lightweight Ball Transducers

Model	Freq.	A	B	C	D	E	Comments/Compatibility
17STL	63.1	4.32	2.425	0.600	0.500	0.0626
23STL	62.5	5.94	3.990	0.600	0.750	0.0626
26STL	64.0	4.38	2.280	0.600	0.750	0.0626
82STL	60.2	4.46	2.359	FLANGE	FLANGE	0.0626	KS1482, 1484

High Frequency Ball Transducers

Model	Freq.	A	B	C	D	E	Comments/Compatibility
3ST	100.5	2.78	1.440	0.442	0.600	0.0626
4ST	99.5	3086	2.375	0.550	0.500	0.0626	ESEC
B6S309	167.0	4.30	2.420	0.660	0.500	0.0626	ASM, Devoltech, ESEC, Hitachi
B4S048	101.5	3.86	2.375	0.550	0.500	0.0626	ASM, Devoltech, Hitachi
B5S041	120.0	4.00	2.080	0.600	0.500	0.0626
B4S261	107.0	4.38	2.280	0.600	0.750	0.0626	Phicom
B4S010	120.0	4.20	2.460	0.600	0.750	0.0626
B4S100	112.0	3.28	2.365	0.750	0.500	0.063	UTC100, ASM
B5S191	108.5	6.05	4.073	0.600	0.749	0.0626	K&S 1419
B5S17B	138.0	4.32	2.425	0.600	0.500	0.0626	ASM, ESEC, Devoltech
B4S280	108.0	5.08	2.425	0.600	0.750	0.0626	Kaijo
B5S230	111.0	5.90	3.990	0.600	0.750	0.0626	Mitsubishi, Matsushita, Toshiba

Lightweight, High Frequency Ball Transducers

Model	Freq.	A	B	C	D	E	Comments/Compatibility
B4A172	108.0	4.32	2.425	0.600	0.500	0.0626	ASM, Devoltech, ESEC, Hitachi
B4A230	107.0	5.90	3.990	0.600	0.750	0.0626	Mitsubishi, Matsushita, Toshiba
B5L191	107.0	6.05	4.073	0.600	0.749	0.0626	K&S 1419
B6T100	165.0	3.28	2.365	0.750	0.500	0.0626	Devoltech, Shinkawa

138 kHz Ultrasonic Ball Transducers

Model	Freq.	A	B	C	D	E	Comments/Compatibility
B5S17L	138	4.00	2.425	0.600	0.500	0.0626	ASM, Devoltec, Hitachi, Hybond
B5S17B-IG	137	4.00	2.425	0.600	0.500	0.0626	Samsung, ESEC
B5S060	138	2.55	0.939	0.600	0.500	0.0626	New Model
