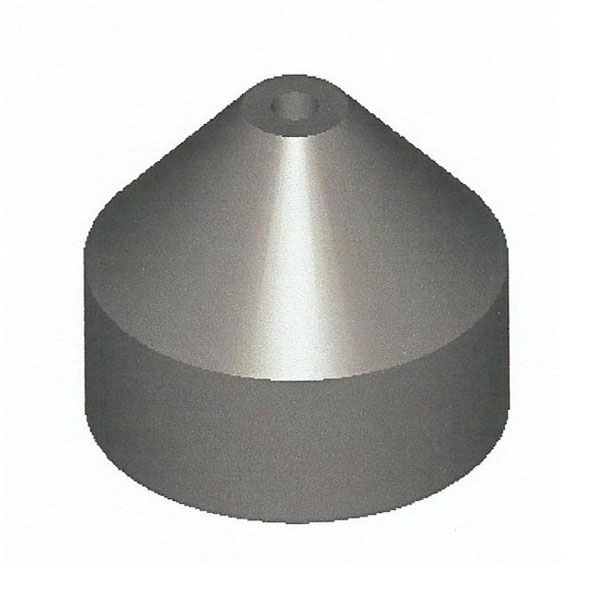

常温异型橡胶吸嘴（点击图像进入）

详细介绍

以上橡胶吸嘴请按相对应的芯片尺寸选择匹配对应吸嘴尺寸的型号。



PART   NUMBER	INCH	MM（ID)	DESCRIPTION	RUBBER TIP HOLDER
RR-012	12	0.304	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-016	16	0.406	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-020	20	0.508	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-035	.035	0.89	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-040	.040	1.02	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-045	.045	1.14	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-050	.050	1.27	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-060	.060	1.52	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-070	.070	1.78	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-080	.080	2.03	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-090	.090	2.29	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-100	.100	2.54	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-110	.110	2.79	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-120	.120	3.05	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-130	.130	3.30	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-140	.140	3.56	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-150	.150	3.81	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-160	.160	4.06	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-170	.170	4.57	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-200	.200	5.08	Replaceable Rubber   Tip	RSB   Holder   1,6
RR-220	.220	5.59	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-240	.240	6.10	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-260	.260	6.60	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-280	.280	7.11	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-300	.300	7.62	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-320	.320	8.13	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-340	.340	8.64	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-360	.360	9.14	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-380	.380	9.65	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-400	.400	10.16	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-420	.420	10.67	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-440	.440	11.18	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-460	.460	11.68	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-480	.480	12.00	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-500	.500	12.70	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-550	.550	13.97	Replaceable Rubber   Tip	RSC   Holder   2,6
RR-600	.600	15.24	Replaceable Rubber   Tip	RSC   Holder   2,6
Material   Specifications:
Hardness        70Shore A
Heat resistance      130  deg.C
Static   dissipation     0.01to0.03sec
Ionic   purity     less than 10  ppm
